63 11 840 Replacing left LED fan left (outer)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove HEADLIGHT WITH LED TECHNOLOGY

Ease adjusting pin (1) up out of adjusting element and remove.

Release screws (2) and remove protective cap (3).

Tightening torque 63 11 6AZ

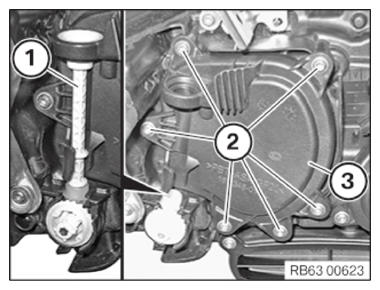

Fig 1: Identifying Adjusting Pin, Protective Cap, And Screws

G09881300

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining tabs on protective cap (1) must not be damaged or missing.

Gasket (2) must not be damaged and must be installed free from grease.

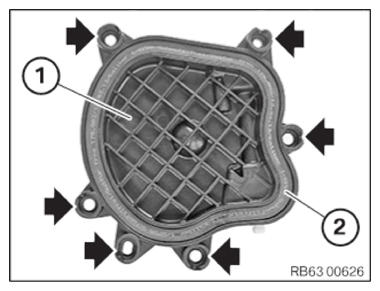

Fig 2: Identifying Protective Cap Gasket And Retaining Tabs

G09881301

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and remove cable clip (1) with long-nose pliers.

Lay cable (2) downwards.

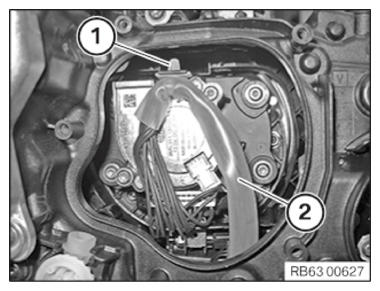

Fig 3: Identifying Cable And Cable Clip

G09881302

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release screws (2) and remove fan (3).

Tightening torque 63 11 5AZ

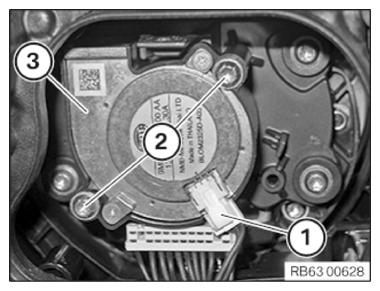

Fig 4: Identifying Fan, Connector, And Screws

G09881303

Courtesy of BMW OF NORTH AMERICA, INC.
