63 11 820 Replacing LED module for cornering light, left (07/13 onward)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE HEADLIGHT

Release latch mechanism and pull trim (1) slightly forward.

Unfasten screws (2).

Tightening torque 63 11 3AZ

Remove LED module (3).

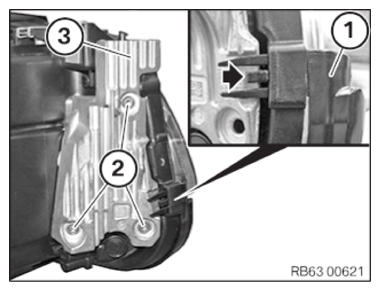

Fig 1: Identifying LED Module, Trim Latch, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove LED module (2).

If necessary, remove sealant residue from headlight housing.

Installation note:

Ensure LED module (2) is correctly positioned in headlight housing.

If necessary, replace sealant (3) for LED module (2) (see BMW Electronic Parts Catalogue).

As far as possible, do not touch sealant (3) on new LED module (2).

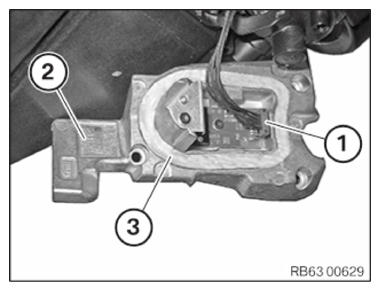

Fig 2: Identifying LED Module, Sealant, And Connector

Courtesy of BMW OF NORTH AMERICA, INC.
