63 17 070 Removing and installing left fog light

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The time value of this job item does not include adjustment of the FOG LIGHTS !

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS)

Necessary preliminary tasks:

REMOVE ornamental grille in bumper panel

Release screws (1).

Tightening torque 63 12 7AZ .

Remove fog light (2) in direction of arrow.

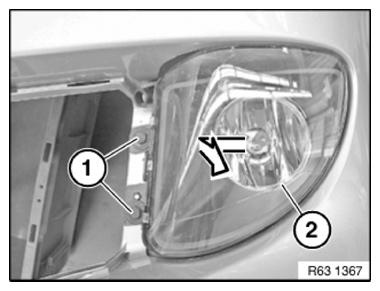

Fig 1: Removing Fog Light

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on fog light (2).

Remove fog light (2).

If necessary, turn bulb holder in direction of arrow and remove from fog light (2).

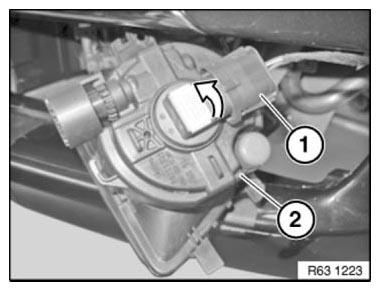

Fig 2: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

On replacement of fog light or bumper panel at front

If necessary, remount bulb, check BULB TYPE
ADJUST FOG LIGHTS
