63 14 060 Removing and installing/replacing the front left or right side marker

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary work:

Partially remove FRONT WHEEL ARCH COVER (front section)

NOTE: Minimum object temperature of side marker and bumper panel ≥ 18 °C.
If this temperature is not achieved, the components must be preheated.

Remove side marker

NOTE: The side marker (1) cannot be used again.

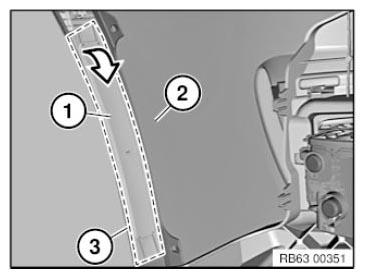

Carefully preheat side marker (1) in area (3) using hot air blower and use special tool 00 9 325 to release it from the bumper panel (2).

Fig 1: Removing Side Marker From Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Clean bumper panel

To clean use a lint-free disposable cloth or a clean cleaning cloth.

Clean bonding surface of bumper panel using spirits.

Air drying time at least 1 minute.

Do not touch bonding surface any more.

Install side marker

Release liner* (1) and lightly press side marker (2) to side wall.

Check position and realign, if necessary.

The minimum contact pressure is achieved by firmly pressing your thumbs or the balls of your hands over the entire joining area (holding time approx 1 second).

Firm thumb pressure approx. 35 N/cm² .

* Liner is protective film at new side marker.
