37 12... Replacing ventilation line for air supply unit
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove REAR BUMPER TRIM

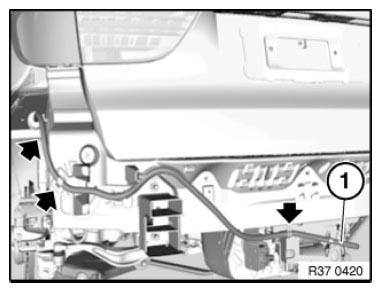

Disconnect ventilation line from air supply unit (1).
Unclip ventilation line (1) from clips and remove.
