37 14 055 Removing and installing/replacing Vertical Dynamics Management control unit (VDM with Dynamic Drive)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks

Remove ignition key
Disconnect BATTERY NEGATIVE LEAD
Remove SIDE TRIM PANEL FROM FOOTWELL ON RIGHT A-PILLAR

Fold carpet in footwell at bottom right to one side.

Release screws (1).

Tightening torque 37 14 6AZ .

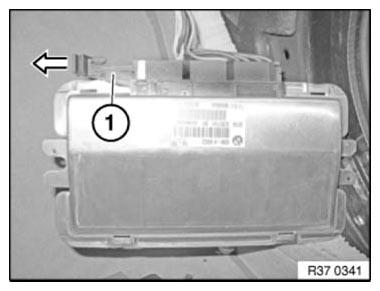

Fig 1: Identifying Control Unit Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) in direction of arrow and disconnect.

Remove control unit.

Fig 2: Unlocking Control Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Replacement only: Carry out PROGRAMMING/ENCODING
