65 77 604 Replacing sensor mat (CIS mat) for front passenger seat occupancy detector
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Note AIRBAG SAFETY REGULATIONS
!
Incorrect handling can lead to airbag deployment and cause injury.
Incorrect handling can lead to airbag deployment and cause injury.
WARNING:
Only US and Canadian version of front passenger seat (with CIS mat):
The CIS mat can only be removed from the upholstery together with the seat cover.
If CIS mat, seat cover or seat heating is defective, all parts may only be replaced together.
After fitting the seat cover, the CIS mat must be enabled with the BMW PROGRAMMING SYSTEM .
The CIS mat can only be removed from the upholstery together with the seat cover.
If CIS mat, seat cover or seat heating is defective, all parts may only be replaced together.
After fitting the seat cover, the CIS mat must be enabled with the BMW PROGRAMMING SYSTEM .
Procedure for replacing the CIS mat together with the seat cover is described in:
- Replacing seat cover for front seat. See NORMAL/ELECTRIC SEAT , SPORTS SEAT , or COMFORT SEAT .
The work scope with CIS mat is different for the following work steps:

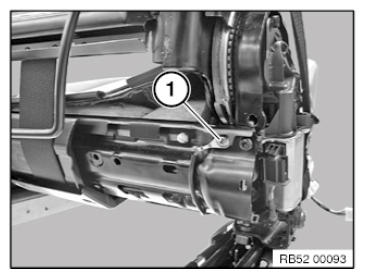

Loosen the bolting point (1) of the ground cable on the seat pan.
Cut open cable strap (1).

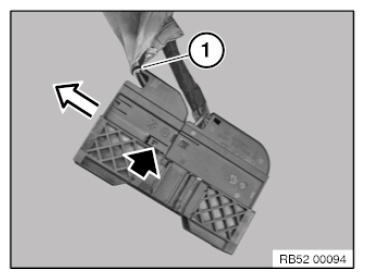

Lift locking tab and pull the connector out of the side of the connector housing.
Installation note:
Replace cable tie (1).
Connector is encoded against incorrect assembly.
Installation note:
Enabling seat occupancy detection (CIS mat):
- Connect BMW PROGRAMMING SYSTEM
- Encode airbag control unit
- Delete fault memory if necessary
