52 26 199 Removing and installing/replacing rear panel on left rear seat back

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE LEFT BACKREST COVER

Remove folding covers on left and right:

Detach cover (1).

Fig 1: Removing Backrest Cover

G08487055

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 52 26 8AZ .

Remove folding cover.

Fig 2: Removing Left Rear Seat Backrest Frame Screws

G08486954

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off rear panel (1).

Fig 3: Identifying Rear Panel

G08487057

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, use flat scraper (1) to separate rear panel (2) from rear seat backrest.

Installation:

Comply with instructions issued by manufacturer of universal spray adhesive.

Apply universal spray adhesive to rear panel and rear seat back.

Fit and align rear panel within the air drying time (see manufacturer's instructions).

Observe and adhere to curing time to prevent rear panels from slipping.

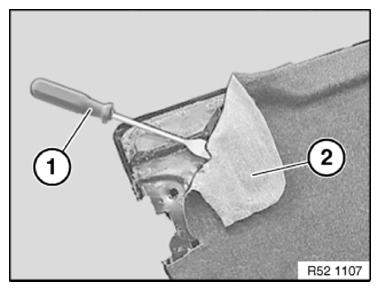

Fig 4: Separating Rear Panel From Rear Seat Backrest

G09880781

Courtesy of BMW OF NORTH AMERICA, INC.
