52 26 153 Removing and installing/replacing seat cover for left rear seat

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove REAR SEAT .
• REMOVE OUTER COVER .

Unhook seat cover in marked area.

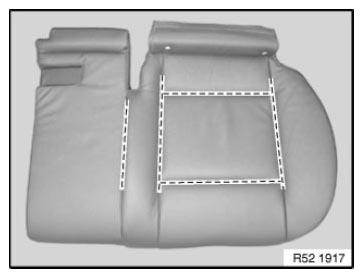

Fig 1: Identifying Seat Cover Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook spring.

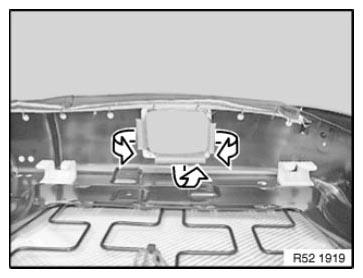

Fig 2: Removing Rear Seat Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Cut open cable tie (1).

Installation:

Replace defective cable ties.

Unhook spring.

Disconnect retainers in marked area

Remove seat cover with support.

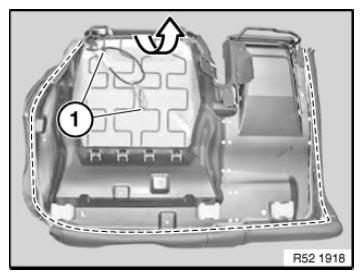

Fig 3: Identifying Rear Seat Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect retainers in marked area

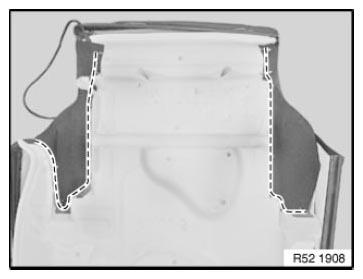

Fig 4: Identifying Rear Seat Retainers Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect retainers in marked area

Remove all remnants of clips from cover and support.

Replacement only:

• Pull all trim wires out of cover.
• If necessary, cut pockets in new cover for trim wires.
• Push trim wires into cover pockets.
  Fig 5: Identifying Rear Seat Trim Wire

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Padding
2. Retainer
3. Trim wire in padding
4. Trim wire in seat cover
5. Seat cover
   Fig 6: Inserting Seat Cover Clamp Using Special Tool (52 0 050)

   Courtesy of BMW OF NORTH AMERICA, INC.
