52 26 042 Removing and installing/replacing cover for backrest angle adjustment on left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Pull handle and release screw underneath.

Tightening torque 52 26 07AZ .

Remove handle.

Fig 1: Removing Backrest Angle Adjustment Handle

Courtesy of BMW OF NORTH AMERICA, INC.

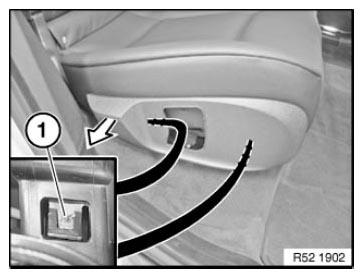

Press release (1), one after another, with screwdriver and pull off cover.

Installation:

Cover and cover mount must not be damaged.

Fig 2: Removing Backrest Angle Adjustment Cover

Courtesy of BMW OF NORTH AMERICA, INC.
