52 25... Removing and fitting rear seat fan

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove LEFT or RIGHT rear seat.

Release screws (1).

Tightening torque 52 25 06AZ .

Remove fan (2).

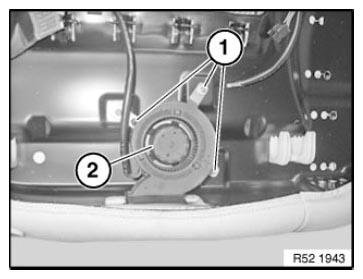

Fig 1: Identifying Rear Seat Fan Screws

Courtesy of BMW OF NORTH AMERICA, INC.
