52 25 006 Removing and installing/replacing left rear seat

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ARMREST .

Unclip rear seat to the front and lift up.

Installation:

Pull belt buckle through recess in rear seat.

Fig 1: Removing Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection for switch cluster and disconnect.

Depending on optional equipment:

If necessary, unlock and disconnect plug connection for seat fan and/or seat heating.

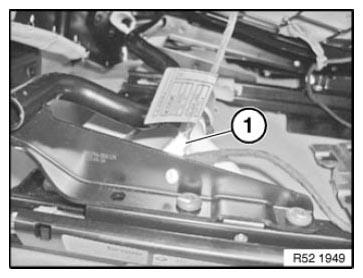

Fig 2: Identifying Rear Seat Switch Cluster Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
