52 25 403 Replacing seat cover for left rear seat: Notes

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

Remove REAR SEAT
Remove SWITCH COMBINATION for seat adjustment

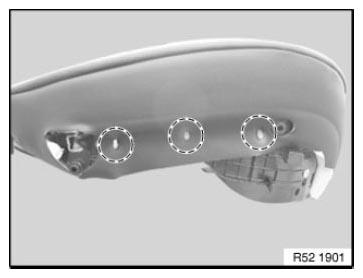

Unhook seat cover in marked area.

Fig 1: Identifying Seat Cover Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

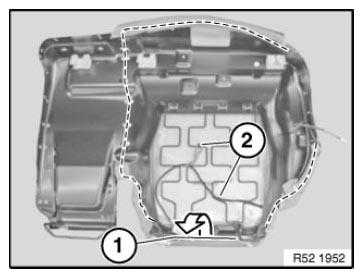

Unhook welt (1).

Cut open cable tie (2).

Installation:

Replace defective cable ties.

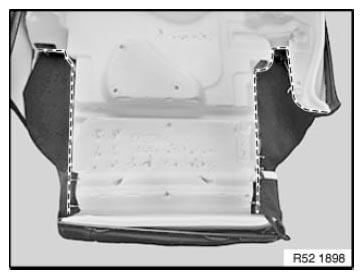

Disconnect retainers in marked area

Remove seat cover with support.

Fig 2: Removing Seat Cover Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

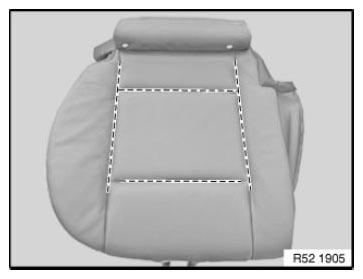

Disconnect retainers in marked area

Fig 3: Identifying Seat Cover Retainers Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect retainers in marked area

Remove all remnants of clips from cover and support.

Replacement only:

Pull all trim wires out of cover
If necessary, cut pockets in new cover for trim wires
Push trim wires into cover pockets

Fig 4: Identifying Seat Cover Trim Wires
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

Padding
Retainer
Trim wire in padding
Trim wire in seat cover
Seat cover

Fig 5: Inserting Seat Cover Clamp Using Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.
