52 25 030 Removing and installing/replacing armrest for rear seat backrest

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip cover (1) upwards.

Installation note:

Retaining lugs must not be damaged.

Replace cover if necessary.

Fig 1: Identifying Rear Seat Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

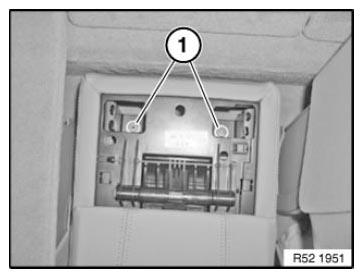

Release screws (1).

Tightening torque 52 25 02AZ .

Lift armrest out of vehicle.

Fig 2: Identifying Vehicle Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.
