52 14 422 Replacing padding for driver's seat backrest

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove backrest cover.
See procedure for relevant seat type:

- NORMAL/ELECTRIC DRIVER'S SEAT

- SPORT DRIVER'S SEAT

- COMFORT DRIVER'S SEAT

Remove dividing net (1) towards top.

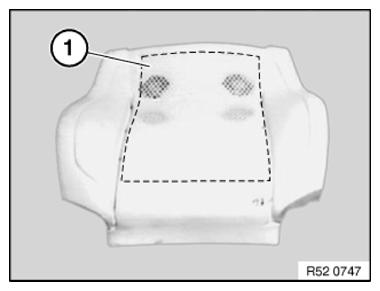

Fig 1: Identifying Backrest Cover Dividing Net

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan (1) towards top.

Installation:

Make sure fans have correct cable routing (2) (cables point to each other).

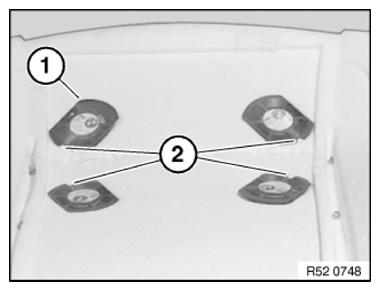

Fig 2: Identifying Seat Fans

Courtesy of BMW OF NORTH AMERICA, INC.
