52 14 407 Replacing backrest cover for driver's seat (normal/electric)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Optional equipment with seat heating only:

Unfasten plug connection (1) and disconnect.

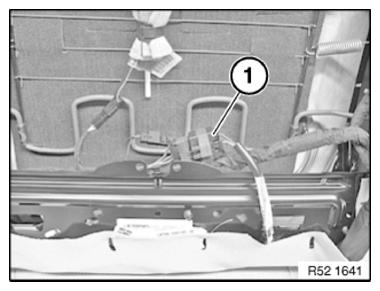

Fig 1: Identifying Driver Seat Backrest Plug Connection
G09879931Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

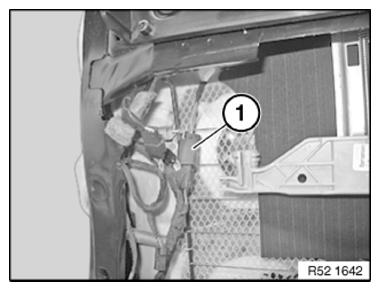

Fig 2: Identifying Front Seat Backrest Plug Connection
G09879932Courtesy of BMW OF NORTH AMERICA, INC.

Only with air conditioning optional equipment:

Open Velcro fasteners (1).

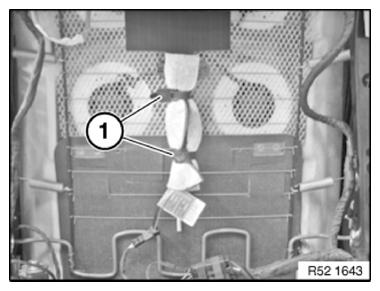

Fig 3: Identifying Front Seat Velcro Fasteners
G09879933Courtesy of BMW OF NORTH AMERICA, INC.

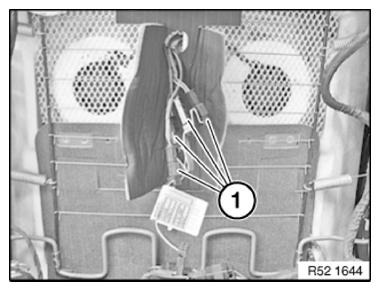

Unlock and disconnect plug connections (1) for fan.

Fig 4: Identifying Fan Plug Connections
G09879934Courtesy of BMW OF NORTH AMERICA, INC.

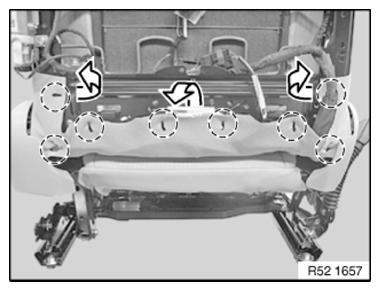

Disengage backrest cover in lower area from attachment points.

Fig 5: Disengaging Backrest Cover (Lower Area)
G09879935Courtesy of BMW OF NORTH AMERICA, INC.

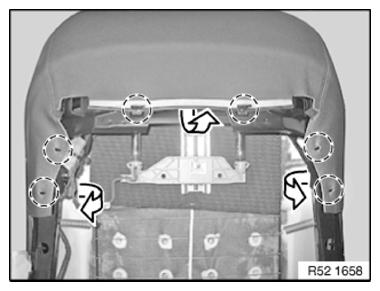

Disengage backrest cover in upper area from attachment points.

Fig 6: Disengaging Backrest Cover (Upper Area)
G09879936Courtesy of BMW OF NORTH AMERICA, INC.

With rear passenger compartment monitor optional equipment only:

Remove REAR PASSENGER COMPARTMENT MONITOR .

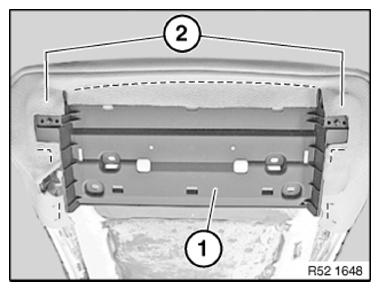

Release tackers in marked area from carrier plate (1).

Remove clamps (2) at top left and right.

Replacement only:

New backrest cover must be cut to size.

Slide cutting base under cover.

Place template on leather edge.

Mark outline and cut out.

Fig 7: Identifying Carrier Plate Marked Area And Clamps
G09879937Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mount head restraint to pretension backrest cover.

The seam of the backrest cover must not be wavy and must be flush with the backrest frame upper edge.

Align backrest cover centrally.

Tack backrest cover with pneumatic tacker front inside outwards to carrier plate (1).

7 tackers on carrier plate at top.

4 tackers on left and right in side area.

52 0 050 Bend new clamps closed with pliers.

Backrest cover must not show any folds.

Disengage cover welt from cover securing strip.

  1. Raise cover welt from cover securing strip.
  2. Pull cover welt upwards and feed out of cover securing strip.

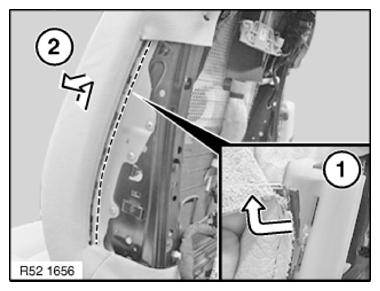

    Fig 8: Disengaging Seat Cover Welt
    G09879938Courtesy of BMW OF NORTH AMERICA, INC.

Pull out backrest cover at bottom between backrest frame and seat mechanism.

Disengage backrest cover sideways.

Detach backrest cover with padding upwards from backrest frame.

Installation note:

Padding must be cleanly inserted between backrest frame and seat mechanism.

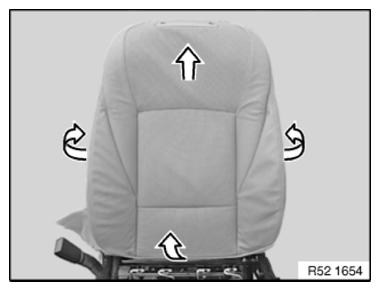

Fig 9: Detaching Backrest Cover
G09879939Courtesy of BMW OF NORTH AMERICA, INC.

Release all clamps in marked area.

Remove backrest cover from upholstery.

IMPORTANT: Remove all remnants of clips from backrest cover (1) and upholstery.
Fig 10: Identifying Backrest Cover Clips
G09879940Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clamp positions are marked in upholstery.

Bend new clamp (2) 52 0 050 closed with pliers.

  1. Upholstery
  2. Clamp
  3. Trim wire in upholstery
  4. Trim wire in backrest cover
  5. Backrest cover

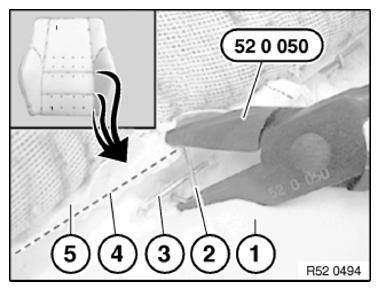

    Fig 11: Bending Backrest Cover Clamp
    G09879941Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only

Pull trim wires out of backrest cover.

Installation note:

Slide trim wires into new backrest cover.

If necessary, cut locators for trim wires in new part.

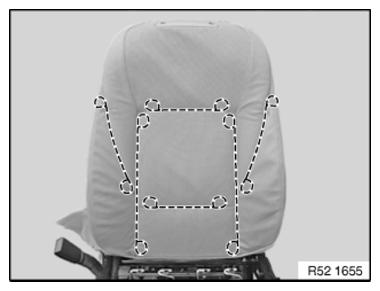

Fig 12: Identifying Backrest Cover Trim Wires
G09879942Courtesy of BMW OF NORTH AMERICA, INC.

Lever out locking strip of head restraint guide with special tool 1 00 9 317 .

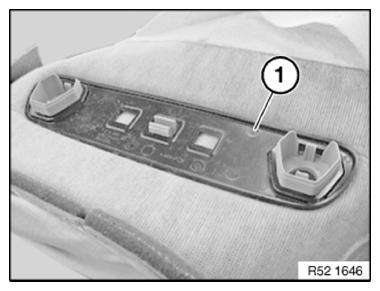

Fig 13: Identifying Head Restraint Guide Locking Strip
G09879943Courtesy of BMW OF NORTH AMERICA, INC.
