52 14 418 Replacing padding for front passenger seat (from 09/09 onward)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Operation is described in:
- Replacing SEAT COVER ON LEFT OR RIGHT FRONT SEAT .
WARNING:
US/CDN front passenger seat (with CIS mat) only:
If CIS mat or padding is defective, both parts must be replaced together.
Full functional capability can only be guaranteed with original BMW spare parts.

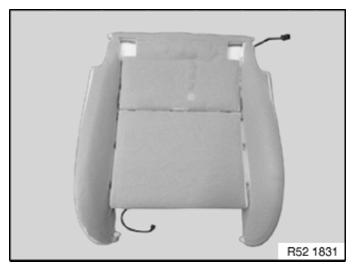

Seat heating is integrated in the CIS mat and is stuck to the padding over the full surface.
If CIS mat or padding is defective, both parts must be replaced together.
Full functional capability can only be guaranteed with original BMW spare parts.
Seat heating is integrated in the CIS mat and is stuck to the padding over the full surface.
IMPORTANT:
The CIS mat must be enabled after each installation operation.
Enabling seat occupancy detector (CIS mat):
- Connect BMW PROGRAMMING SYSTEM
- Encode airbag control unit
- Delete fault memory if necessary
