52 14 402 Replacing seat cover for driver's seat (older version): Notes

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove DRIVER'S SEAT .
• Remove REAR PANEL  on front seat backrest
• Remove INNER COVER  on driver's seat
• Remove SWITCH COMBINATION

Remove cover (1) on front seat:

• Press clip on door side outwards
• Press clip on tunnel side upwards
• Pull cover (1) forwards out of seat mechanism

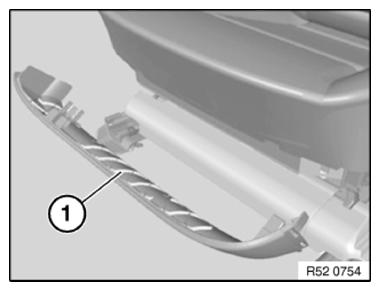

  Fig 1: Identifying Front Seat Cover

  Courtesy of BMW OF NORTH AMERICA, INC.

Unhook seat cover on at all attachment points (1).

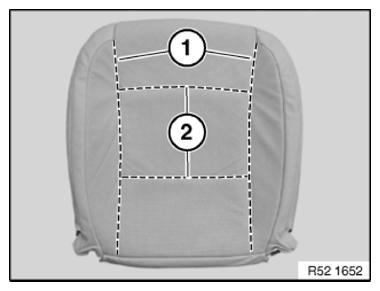

Fig 2: Identifying Seat Cover Attachment Points

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook seat cover in marked area (1).

With seat heating only as optional equipment:

Disconnect plug connection (2).

Remove seat cover complete with upholstery.

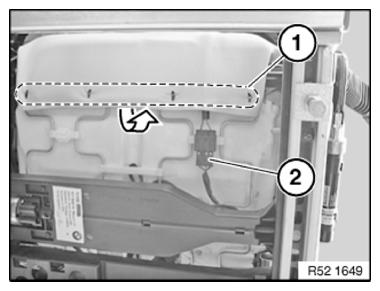

Fig 3: Removing Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

With climate control only as optional equipment:

Release plug connections (1) and disconnect.

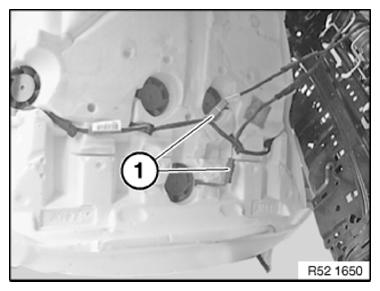

Fig 4: Identifying Seat Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Detach all clamps in side area from longitudinal wires (1).

Pull trim wires (1) forward out of seat cover.

Carefully fold back seat cover and release clamps from cross-wires (2).

Remove seat cover from upholstery.

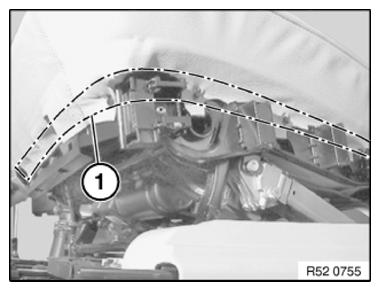

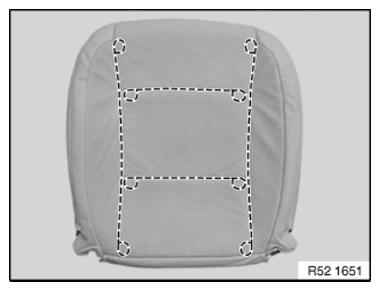

Fig 5: Identifying Seat Cover Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

Replace seat cover

Pull trim wires out of seat cover.

Installation note:

Slide trim threads into new seat cover.

If necessary, cut mounting for trim threads.

Fig 6: Identifying Seat Cover Trim Threads

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bend new clamp (2) 52 0 050 closed with pliers.

1. Upholstery
2. Clamps
3. Trim wire in seat cover
4. Trim wire in upholstery
5. Seat cover

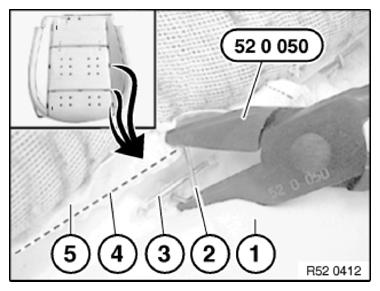

   Fig 7: Bending Seat Cover Clamp Using Pliers
