52 14 209 Removing and installing carrier plate for rear monitor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

Remove REAR CABIN MONITOR

Release tacker in marked area from carrier plate (1).

Remove clamps (2) at top left and right.

Fig 1: Identifying Carrier Plate Marked Area And Clamps

G09879799

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Remove carrier plate (2).

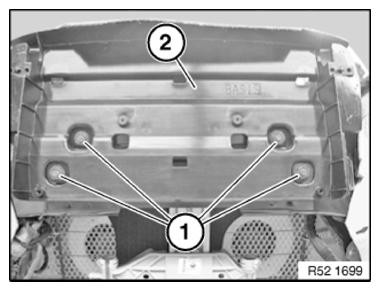

Fig 2: Identifying Carrier Plate Nuts

G09879800

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mount head restraint to pretension backrest cover.

The seam of the backrest cover must not be wavy and must be flush with the backrest frame upper edge.

Align backrest cover centrally.

Tack backrest cover with pneumatic tacker (sourcing reference: see BMW workshop equipment) front inside outwards to carrier plate (1).

7 Tacker on carrier plate at top.

4 Tacker on left and right in side area.

Bend new clamps closed with pliers 52 0 050 .

Backrest cover must not show any folds.
