52 14 198 Removing and installing or replacing rear panel on left or right front seat backrest (older version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

With rear passenger compartment entertainment option only:
Remove REAR PASSENGER COMPARTMENT MONITOR COVER

Operation is shown on the left seat. When removing from the right seat, swap the pull and striking sides accordingly.

Grip between rear panel and backrest cover on tunnel side until clamp can be felt (do not pull).
At same time, firmly punch towards middle of seat on inside (tunnel side) at top.
Upper clamps spring out of seat guide.
Pull rear panel up out of lower guides.

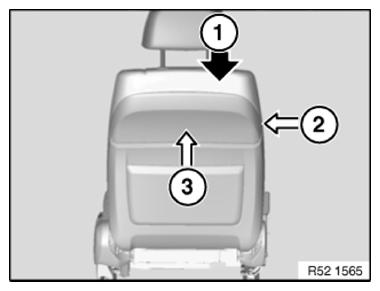

Fig 1: Pulling Seat Lower Guides Rear Panel Up
Courtesy of BMW OF NORTH AMERICA, INC.

With ambient light option only:

Unlock plug connection (1) for ambient light and disconnect.

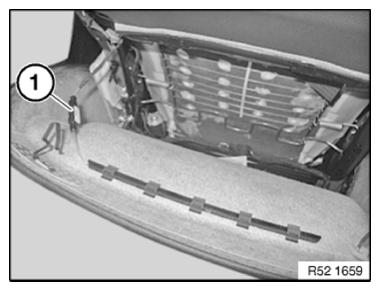

Fig 2: Identifying Ambient Light Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rear panel and clamps must not be damaged.

Upper clamps
Lower clamps

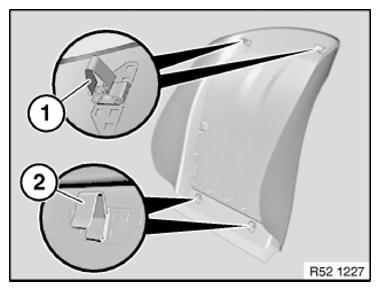

Fig 3: Identifying Seat Rear Panel Clamps
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove AMBIENT LIGHT
