52 14 207 Removing and installing ambient light

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove rear panel on rear seat backrest. See REAR PANEL (VERSION 1) or UPPER REAR PANEL (VERSION 2) .

NOTE: The procedure for fitting the ambient light may differ, depending on the equipment specification.

Version 1:

Release shaft clamping rings (1).

Detach plug (2) from light guide.

Installation note:

Make sure plug is correctly engaged on light guide.

Remove ambient light.

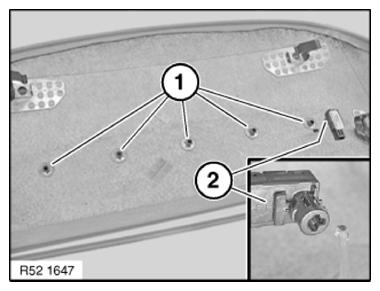

Fig 1: Identifying Ambient Light Shaft Clamping Rings And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Loosen clamps (1).

Detach plug (2) from light guide.

Installation note:

Make sure plug is correctly engaged on light guide.

Remove ambient light.

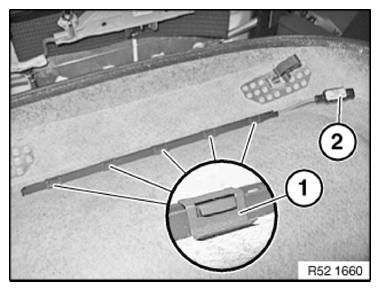

Fig 2: Identifying Ambient Light Plug And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
