52 14 010 Removing and installing/replacing both seat rails on left or right front seat

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove driver's or front passenger seat. See REMOVING DRIVER'S SEAT or REMOVING FRONT PASSENGER SEAT .
Remove lower strap (belt tensioner). See PASSENGER SEAT or DRIVER'S SEAT
Remove COVERS FOR TOP RAIL

Unlock and disconnect plug connection (1) on drive unit for forward/back seat adjustment.

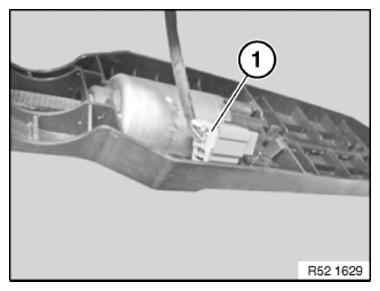

Fig 1: Identifying Seat Adjustment Motor Plug Connection

G09879858

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Tightening torque 52 10 06AZ .

Release nuts (2) on left and right on carrier plate.

Remove seat rails with motor carrier plate.

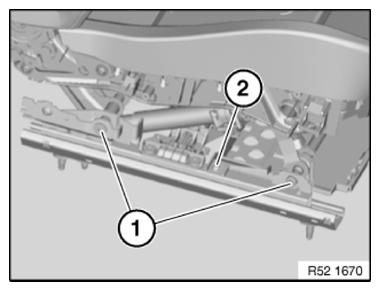

Fig 2: Identifying Seat Rails Motor Carrier Plate Nut And Screws

G09879859

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only

Release screws (1).

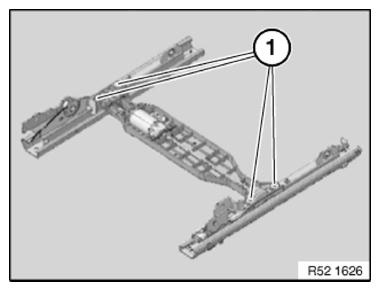

Fig 3: Identifying Seat Rails Motor Carrier Plate Screws

G09879860

Courtesy of BMW OF NORTH AMERICA, INC.

Detach left or right seat rail from flex-shaft.

Detach motor retaining plate with drive and flex-shaft from opposite seat rail.

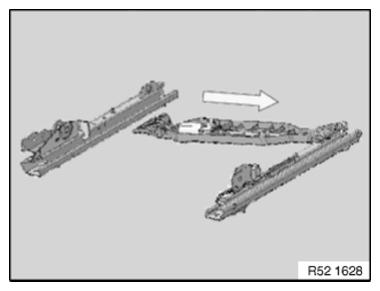

Fig 4: Detaching Motor Retaining Plate

G09879861

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

PTFE hoses are shrink-fitted onto end pieces.

Check that hoses are free from damage.

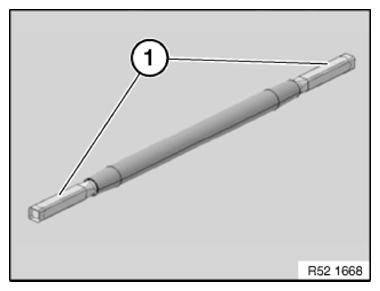

Fig 5: Identifying PTFE Hoses

G09879862

Courtesy of BMW OF NORTH AMERICA, INC.
