67 32 600 Replacing fans for seat surface on front seat

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove seat cover for driver's or front passenger seat. See NORMAL SEAT or OPTIONAL SEAT .
ECE version:
If necessary, remove SENSOR MAT (SEAT OCCUPANCY MAT)
US version:

If applicable, remove the Sensor mat (OC3-mat) or. SENSOR MAT (CIS MAT)

Unfasten plug connection.

Installation note:

Make sure fans have correct cable routing.

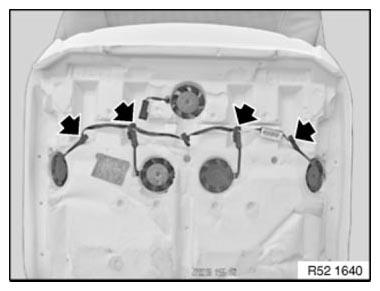

Fig 1: Locating Front Seat Fans Cable

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, picture shows seat cushion and seat cover removed.

Raise separating net (1).

Pull faulty fans (2) out of seat cushion slightly and disconnect plug connections behind.

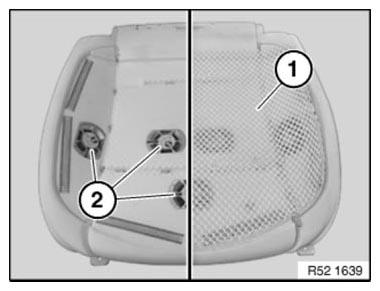

Fig 2: Identifying Seat Cushion Fans And Net

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
