67 11 555 Removing and installing/replacing actuator drive for fuel filler flap

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DISTRIBUTION BOX
Remove right LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Slacken screws (1)

Feed out servodrive (2) in direction of arrow and unlock and disconnect associated plug connection.

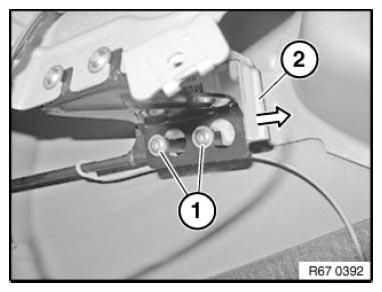

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Turn sleeve (1) with a suitable tool approx. 45° in direction of arrow and pull out of receptacle (2).

Fig 2: Turning Sleeve Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide sleeve (1) over locking pin (2).

Make sure sleeve (1) is correctly engaged in cover housing (3).

Fig 3: Sliding Sleeve And Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1).

Disengage emergency actuation pull strap (2) from retainer (5) and remove towards front.

If necessary, unclip locking pin (3) in direction of arrow from servodrive for tank filler flap (4).

Fig 4: Removing Locking Pin From Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
