61 13 042 Replacing power distribution box (luggage compartment)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATIONS for handling vehicle battery.

Necessary preliminary tasks:

Disconnect BATTERY GROUND LEAD
Disconnect both battery negative leads at F03
Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL on right
If necessary, remove right WHEEL ARCH PANEL (at F01/F02/03)

Disconnect plug connection (1).

Unscrew nuts (2).

Remove power distribution box (3).

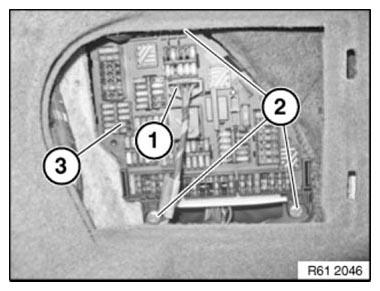

Fig 1: Identifying Power Distribution Box, Plug Connection And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect all plug connections.

Remove power distribution box (1).

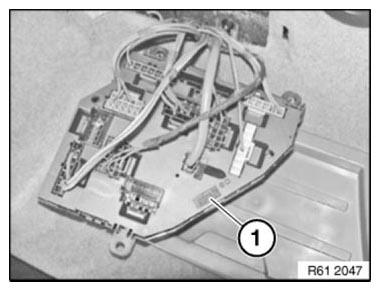

Fig 2: Identifying Power Distribution Box

Courtesy of BMW OF NORTH AMERICA, INC.
