22 32 001 Replacing rubber mount for transmission mounting (ATC 35L)

Special tools required:

• 22 1 017
• 22 1 041
• 22 1 042
• 22 1 043
• 22 1 044
• 22 1 046
• 33 4 460
• 33 4 466
• 33 4 465

Necessary preliminary tasks

• Remove complete exhaust system  . See 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N55) or 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N63)
• Remove transmission cross-member  . See 22 32 050 REPLACING CROSS MEMBER FOR GEARBOX MOUNT (N55)  or 22 32 050 REPLACING CROSS-MEMBER FOR TRANSMISSION MOUNTING (N63) .

For better illustration: Front propeller shaft is removed.

If necessary, release screws (1) for transmission support bracket.

Tightening torque 22 32 10AZ .

Fig 1: Identifying Gearbox Mount Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

Lower transmission with hydraulic lifting equipment.

Mount special tools 22 1 042 /22 1 041 on transfer box.

Pull out rubber mount with thrust plate 22 1 043 by means of spindle 33 4 460 and nut 22 1 017.

Fig 2: Identifying Special Tools Mounted On Transfer Box

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to installation position of rubber mount (1).

Fig 3: Identifying Rubber Mount Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

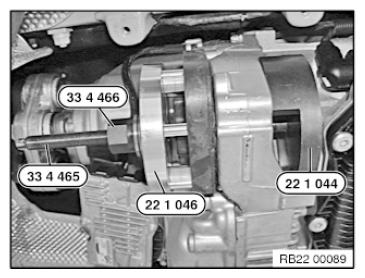

Bolt special tool 22 1 044 to transfer box.

Insert special tool 22 1 046 with bolt into recesses of rubber mount.

Draw in rubber mount with special tools 33 4 466 and 33 4 465.

Installation note:

Auxiliary installation material - low-surface-tension water.

Do not  coat rubber mount with grease.

Fig 4: Inserting Special Tool 22 1 046 With Bolt Into Recesses Of Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.
