18 00 020 Removing and installing complete exhaust system (N55)

Special tools required:

• 31 2 220

Support exhaust system with special tool 31 2 220.

Fig 1: Supporting Exhaust System Using Special Tool 31 2 220

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

• Remove TENSION STRUTS

Release clamp (1).

Tightening torque 18 31 1AZ .

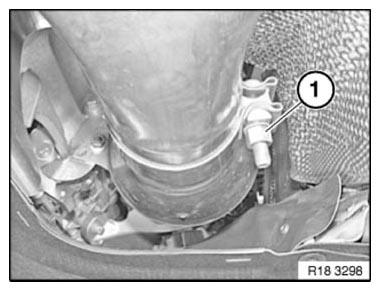

Fig 2: Identifying Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove heat shield (2).

Fig 3: Identifying Heat Shield With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 18 31 4AZ .

Only when independent heating is fitted: release screw (2) on metering pump.

Tightening torque 18 31 5AZ .

Release screws (3) on underbody panels.

Remove reinforcement plate (4).

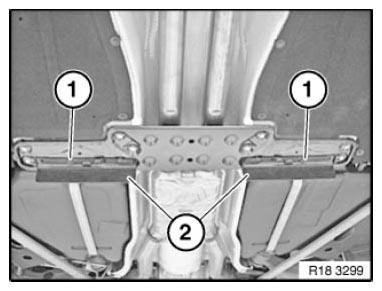

Fig 4: Identifying Reinforcement Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Slacken nut (1).

Tightening torque 18 20 3AZ .

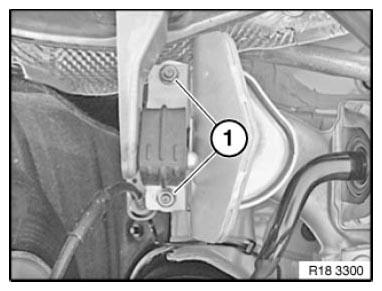

Fig 5: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Slacken nuts (1).

Tightening torque 18 31 3AZ .

Fig 6: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 18 31 3AZ .

Lower and remove exhaust system with assistance of a second person.

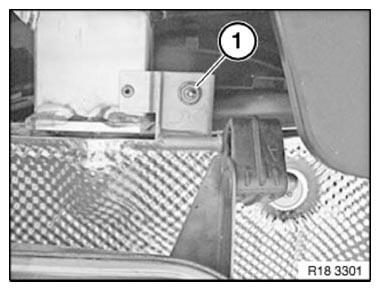

Fig 7: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check rubber mount for damage.

If necessary, replace damaged rubber mounts.

Check exhaust system for leaks.
