24 00 034 Removing and installing automatic transmission (GA8HP70Z) N63

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: To prevent heavy damage to the engine block, the protruding thread of the transmission bolts absolutely must be checked for damage and corrosion before removal .
If there are signs of corrosion, the rust must be removed and the threads must be cleaned before removal .
Replace rusted, damaged screws.

Failure to comply with this instruction will result in serious damage to the engine block and transmission.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: After completion of repair work, check transmission oil level. Refer to CHECKING TRANSMISSION FLUID LEVEL .
Use only the approved transmission oil. Refer to APPROVED AUTOMATIC TRANSMISSION FLUIDS FOR INITIAL FILLINGS AND CORRECTING FLUID LEVELS .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks

Clamp off battery . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD or 61 20... INFORMATION ON AGM BATTERY
Remove BOTH INTAKE SILENCER HOUSINGS
Remove underbody protection . See 51 47 490 REMOVING AND INSTALLING/REPLACING UNDERBODY PROTECTION (FRONT) or 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION at front and rear
Remove PROPELLER SHAFT
- NOTE: Bending the propeller shaft by an excessive angle can cause premature damage to the joint/propeller shaft!
Support engine with jack when removing gearbox

Unfasten ground strap (1).

Remove retaining plates (2).

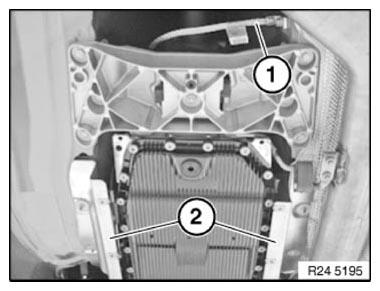

Fig 1: Identifying Ground Strap And Retaining Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Disconnect cable (1).

Installation note:

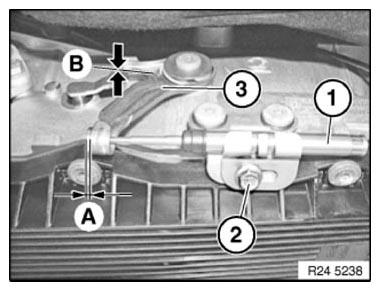

Release screw (2).
Bring release lever (3) into contact with selector shaft by pressing slightly. Distance B=0 mm.
Adjust cable by means of holder until distance A=≥ 1 mm is obtained.
Tighten screw (2).

Fig 2: Identifying Screw, Cable And Lever
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The cable (transmission emergency release) is not required for:

F07 from production date 03/2010.
F10/F11 from production date 06/2010.

Release screw (1).

Remove cover (2).

Tightening torque, 24 00 1AZ

Fig 3: Identifying Screws And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

When unflanging the gearbox, pay attention to installation position of rubber connectors (1).

Fig 4: Identifying Rubber Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove crankshaft sensor.

Disengage cable from holder (2).

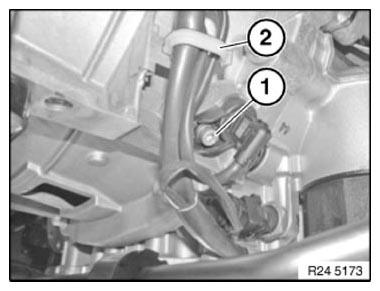

Fig 5: Identifying Screw And Cable From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

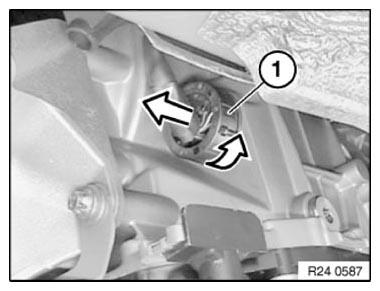

Unlock and disconnect connector (1) by turning.
Do not touch pins.
Release cable from brackets.
Insert special tool 24 2 390 in sealing cup.

Operations are described in:

NOTES ON MECHATRONICS

IMPORTANT: Read and comply with important note.

Fig 6: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Undo hydraulic line and holder.

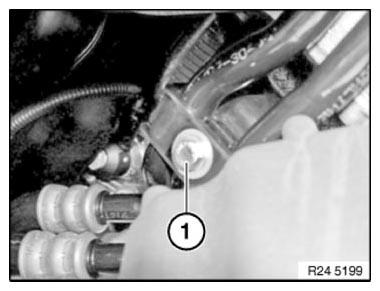

Fig 7: Identifying Hydraulic Line, Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Disconnect hydraulic lines (2) to transmission oil cooler.

Installation note:

Replace sealing rings.

Keep to installation sequence.

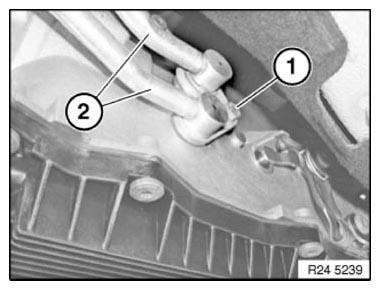

Fig 8: Identifying Screw And Hydraulic Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at vibration damper in direction of rotation until screw (1) is visible in recess.

Undo all 6 bolts on torque converter.

Tightening torque, 24 40 1AZ

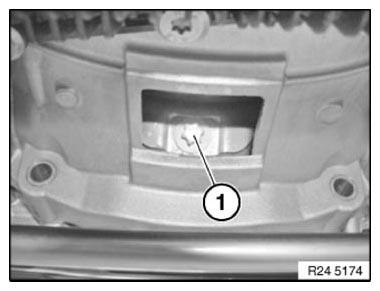

Fig 9: Identifying Vibration Damper And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 4 131 , 24 4 138 into recess in transmission housing.

Lock the torque converter by tightening the special tool.

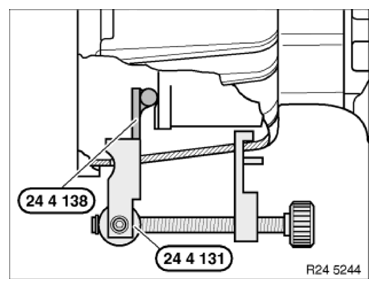

Fig 10: Inserting Special Tool (24 4 131 And 24 4 138) Into Transmission Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on left and right of axle.

Remove cover plate (2) on left and right of axle.

Remove bolt (3) on left and right of axle.

Tightening torque 31 10 1AZ .

Fig 11: Identifying Screw, Cover Plate And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on special tool 11 8 910 .

Fig 12: Identifying Special Tool (11 8 910)

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust distance (1) between cross bar and facing using nuts (2).

Nuts (2) must be screwed down in opposite direction after distance has been adjusted.

IMPORTANT: Distance:
N63 38 mm

Fig 13: Identifying Distance Between Cross Bar And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission

Support transmission with special tools 23 4 050 , 00 2 030 .

Secure transmission to mounting with tensioning strap (1).

Repair work is are described in Gearbox holder. Refer to UNIVERSAL BMW TRANSMISSION TAKE-UP .

After completion of work, check transmission fluid level.

Fig 14: Securing Transmission To Mounting Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and (2).

Remove transmission cross member.

Tightening torque, 22 32 3/4AZ

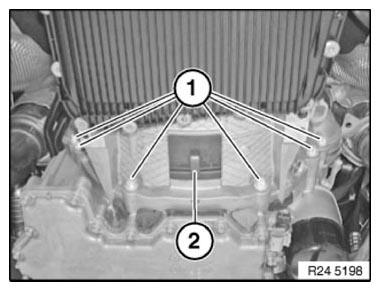

Fig 15: Identifying Transmission Cross Member And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 24 00 1AZ .

Unflange transmission.

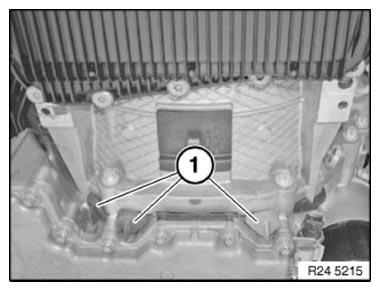

Fig 16: Locating Transmission Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bore (1) in drive plate must be accessible from opening in transmission housing.

Check that fitting sleeves (2) are correctly fitted.

Replace damaged fitting sleeves.

Fig 17: Identifying Bore And Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rotate torque converter until bore hole in torque converter is flush with bore hole in drive plate.

Flange automatic transmission to engine.
