51 75... Removing and installing/replacing lower left or right cover (wheel arch)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove UNDERBODY PROTECTION .

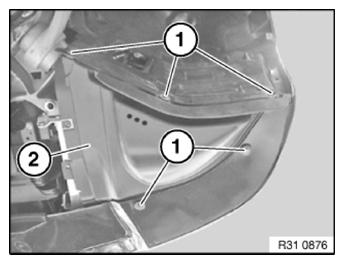

Release all screws (1).
Tightening torque 51 75 1AZ .
Remove cover.
Replacement:
As from April 09, the quick fasteners are omitted and replaced by conventional screw connections.
