51 24 100 Removing and installing/replacing rear lid lock for (upper) tailgate

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR TAIL PANEL AT TOP

Unclip Bowden cable sleeve (1).

Pull out Bowden cable nipple (3).

Disconnect plug connections (2).

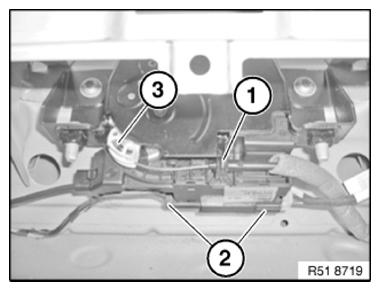

Fig 1: Identifying Bowden Cable Nipple, Cable Sleeve And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 24 1AZ .

US version only

Unclip Bowden cable (2) from emergency release.

Installation:

Place expanded rubber tab at end of Bowden cable directly underneath tail end trim screw cover.

Feed out rear lid lock (3).

Replacement

US version only

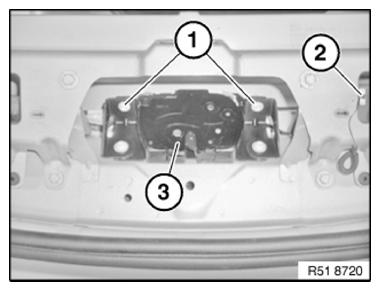

Fig 2: Identifying Screws And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Modify Bowden cable for emergency release.

Installation:

Perform function check with (upper) tailgate open.
