51 46 050 Removing and installing/replacing top trim on tail panel
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 51 2 040
Necessary preliminary tasks:
- Remove LOWER LEFT AND RIGHT TRIM PANEL
- Partially remove REAR SPARE WHEEL WELL TRIM PANEL (rear expanding rivets)
NOTE:
Graphic used originates from F01

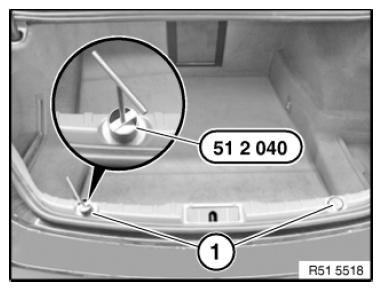

Release impact plates (1) with special tool 51 2 040.
Pull off rear lid seal in the trim area.
Release impact plates (1) with special tool 51 2 040.
Pull off rear lid seal in the trim area.

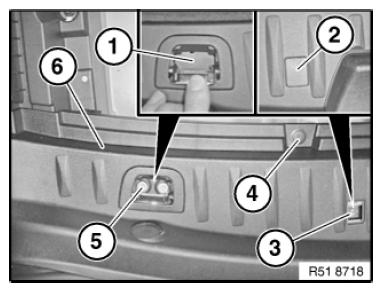

Lever out left and right covers (1) and (2).
Release screws (3) from left and right cover.
Tightening torque 51 47 3AZ .
Release left and right screws (5) from lashing eye.
Tightening torque 51 47 4AZ
Release all expanding rivets (4) along the cover (6).
Shape cover (6) slightly "concave" for removal.
Installation:
Check proper fit of the cover (6).
Make sure the rear lid seal is correctly seated.
Note on installation, US version only:

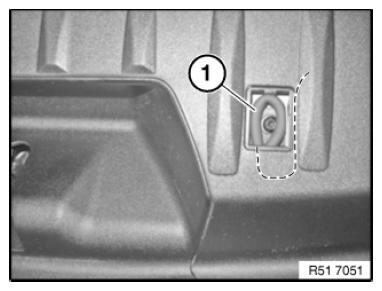

Place foam rubber tab (1) of the emergency release below the screw cover on the right of the tail panel, as illustrated
