51 76 055 Removing and installing/replacing lower tailgate section
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove WATER CHANNEL COVER from side

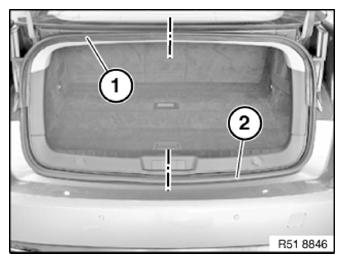

Detaching and removing top sealing (1).
Detaching and removing bottom seal welt (2).
Installation note:
Start installation from the center.
Fit bottom seal welt (2) in front of top sealing (1).
Install profile seal (water gutter) of top sealing (1) in correct position on left and right in tailgate.
