51 49 029 Install water gutter cover at side

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open rear lid
Remove CENTER WATER GUTTER .

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Detach mucket (1) along water gutter (2).

Release bolt (3).

Tightening torque: 51 49 6AZ

Release expansion rivet (4).

Remove water gutter (3)

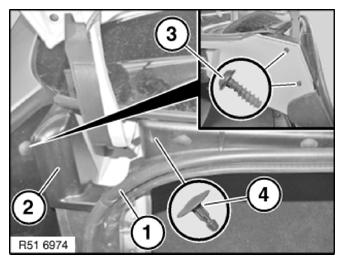

Fig 1: Identifying Mucket Along Water Gutter

Courtesy of BMW OF NORTH AMERICA, INC.

Check clamp (1) for damage, replacing if necessary.

IMPORTANT: If clip mounts (2) are removed after additional work (such as for painting), they need to be replaced to prevent leaks.

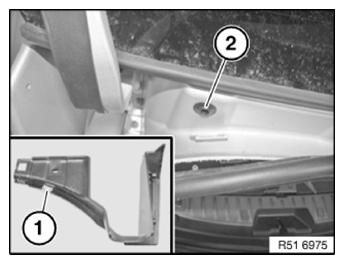

Fig 2: Identifying Water Gutter Cover Clamp And Clip Mounts

Courtesy of BMW OF NORTH AMERICA, INC.
