51 49 110 Remove and install/replace lower trim of loading edge

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Necessary preliminary tasks:

REMOVE TRIM FROM LEFT AND RIGHT tailgate.
Remove TRIM ON UPPER PART OF TAILGATE
Schalter Remove tailgate opener
Remove luggage compartment lighting

Use special tool to lift clips (1) 00 9 321 unhinge trim hook (2) and remove trim panel.

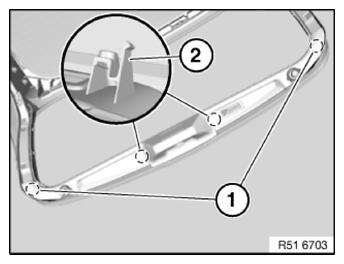

Fig 1: Identifying Clamps On Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clamps (2) on trim panel (1) must not be damaged, replace trim panel if necessary.

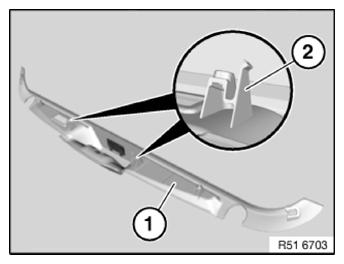

Fig 2: Identifying Clamps On Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
