51 49 112 Remove and install/replace upper part of loading edge tailgate trim

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE TRIM FROM LEFT AND RIGHT tailgate.

Lift cover lid (1) and loosen screws below.

Tightening torque: 51 49 2AZ

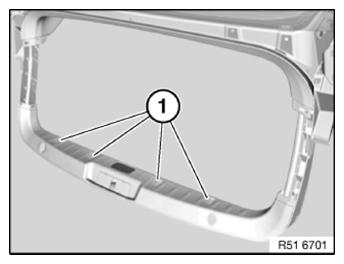

Fig 1: Identifying Cover Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (2) on trim panel (1) must not be damaged, replace trim panel if necessary.

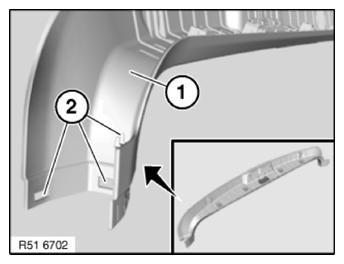

Fig 2: Identifying Guide On Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
