51 49 028 Removing and installing center water gutter cover

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid.

Pull off mucket in upper area of rear lid.

Release expansion rivet (1).

Remove trim (3) in direction of arrow from guide (2).

Fig 1: Pulling Off Mucket In Upper Area Of Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Guide (2) and pin (1) must not be damaged.

Replace water gutter (3) if necessary.

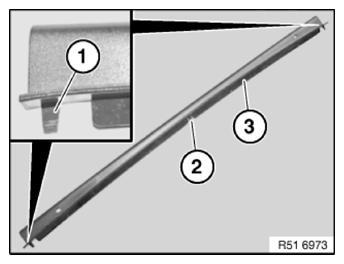

Fig 2: Identifying Water Gutter, Guide And Pin

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: If clip mountings are removed during further operations (e.g. painting), always replace these mountings to ensure watertightness.
