63 31 085 Removing and installing/replacing luggage compartment lamp (on rear lid)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

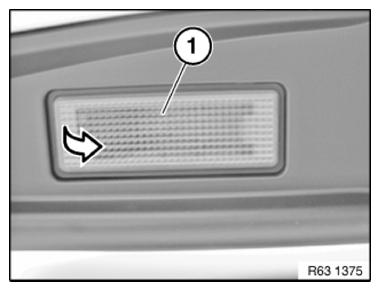

Carefully, lever out luggage compartment light (1) in direction of arrow.
Disconnect plug connection underneath and remove luggage compartment lamp (1).
Replacement:
- If necessary, remove bulbs
- Note BULB TYPE
