51 12 828 Removing and installing/replacing guide for rear left or right bumper
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR BUMPER TRIM
NOTE:
The operation is described on the left side; proceed in the same way for the right side.

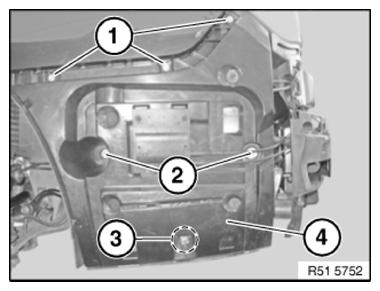

Unfasten screws (1 and 3).
Replace sheet nuts behind if necessary.
Unscrew nuts (2).
Remove guide (4).
Tightening torque 51 12 3AZ .
If necessary, remove TELEPHONE AERIAL .
