51 12 825 Removing and installing/replacing guide for rear center bumper: Notes

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM
If necessary, remove SENSOR FOR LANE CHANGE WARNING

NOTE: Operation is described on the left side.

The operation on the right side is the same as for the left side.

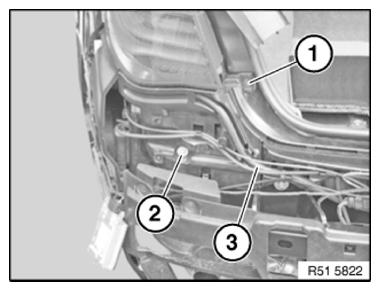

Fig 1: Identifying Screw And Slacken Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Slacken nut (2).

Tightening torque 51 12 2AZ .

Installation note:

Note line routing.

Unscrew nuts (1).

Tightening torque 51 12 2AZ .

If necessary, remove plug connection on bumper aerial for comfort access system.

Feed out guide (2) and remove.

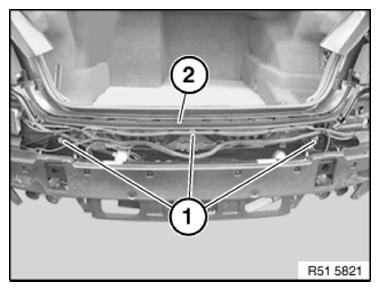

Fig 2: Identifying Nuts And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Remove BUMPER AERIAL for comfort access system
