51 12 050 Removing and installing/replacing support for rear bumper panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM .

Release nut (1) from exhaust bracket on left or left and right.

Tightening torque 51 12 8AZ .

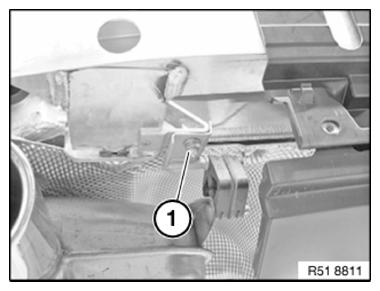

Fig 1: Identifying Nut From Exhaust Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 51 12 1AZ .

For trailer tow hitch only:

Disconnect plug connections of trailer tow hitch.

Remove support for rear bumper trim (4).

Replacement

Release expanding rivets (2).

Modify adapter (3).

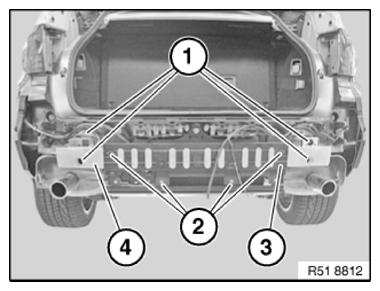

Fig 2: Identifying Rear Bumper Trim, Expanding Rivets And Adapter

Courtesy of BMW OF NORTH AMERICA, INC.
