51 16 365 Removing and installing/replacing glove box cover

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove RIGHT GLOVE BOX

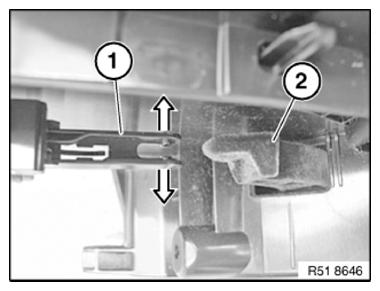

NOTE: For clarification purposes, the damper rod has already been removed from the retaining bracket of the glove box lid in the graphic.

Unclip damper rod (1) from glove box lid retaining bracket (2) and slide back in direction of arrow.

Fig 1: Unclipping Damper Rod

Courtesy of BMW OF NORTH AMERICA, INC.

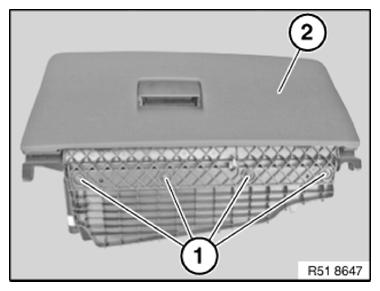

Release screws (1) on glovebox cover (2).

Tightening torque 51 16 15AZ .

Remove glovebox cover (2).

Replacement

Modify glove box handle.

Fig 2: Identifying Glove Box Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
