51 16 041 Removing and installing/replacing protective cap on left or right exterior mirror (from 07/13)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS

NOTE: Protective cap is secured without play to the retaining ring by means of multitooth catches (1).

Secure protective cap on exterior mirror against falling off.

Raise catches (2) slightly and detach protective cap towards front from multitooth catch (1).

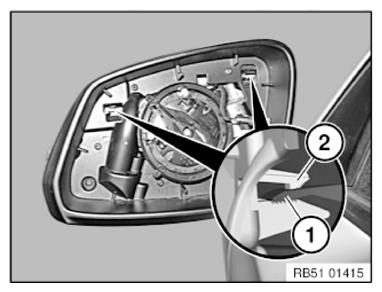

Fig 1: Identifying Catch And Multitooth Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

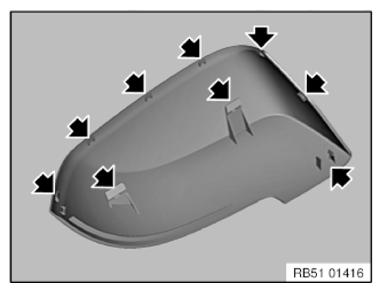

Catches and guides must not be missing or damaged.

Fig 2: Locating Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
