51 16 026 Replacing mirror glass
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
WARNING:
Danger of injury!
Move mirror glass with hand carefully and slowly.
If mirror glass is damaged:
Wear protective goggles and cut-proof gloves.
Risk of injury by flaking-off glass splinters.
Move mirror glass with hand carefully and slowly.
If mirror glass is damaged:
Wear protective goggles and cut-proof gloves.
Risk of injury by flaking-off glass splinters.
IMPORTANT:
Risk of damage!
Bring exterior mirror to room temperature to prevent catches from breaking off.
Bring exterior mirror to room temperature to prevent catches from breaking off.
IMPORTANT:
Risk of damage!
Secure mirror glass (1) against falling out.
Secure mirror glass (1) against falling out.

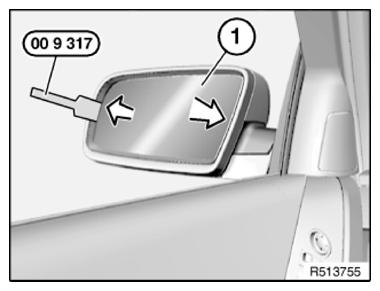

Press mirror glass (1) on side vehicle by hand to full extent.
Unclip mirror glass (1) all around from outer side with special tool 00 9 317 .
Unlock and disconnect associated plug connections, remove mirror glass (1).
Installation note:

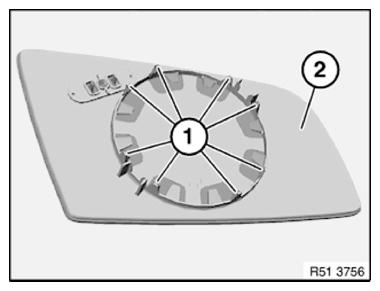

Retaining lugs (1) must not be damaged.
Fit mirror glass (2) with retaining lugs (1) flush on mirror adjusting drive and clip into place.
Ensure correct locking.
Make sure mirror adjusting drive functions correctly.
