51 45 370 Removing and installing (replacing) left decorative strip on dashboard

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

NOTE: Graphic shows F01.

Carefully remove decorative strip (1) 00 9 317 with special tool and disconnect plug connection behind.

Fig 1: Removing Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure clamps (1) are correctly seated on decorative strip (2).

Replace defective clamps.

Replacement

Modify LIGHT OPERATING UNIT .

Modify clamps (1).

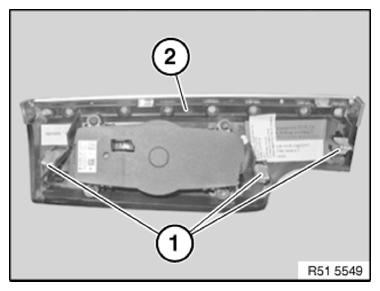

Fig 2: Identifying Clamps And Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.
