61 31 037 Removing and installing/replacing light operating facility

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove DECORATIVE STRIP ON DASHBOARD ON LEFT

Removal

Release all screws (1) and detach light operating facility (2) from left decorative strip (3).

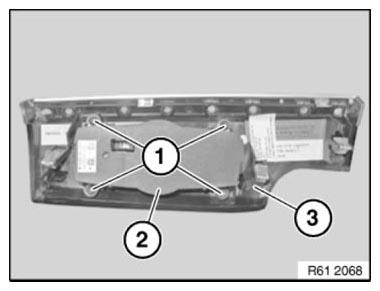

Fig 1: Identifying Light Operating Facility, Decorative Strip And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Join light operating facility (2) to left decorative strip (3).

Tighten all screws (1).

Fig 2: Identifying Light Operating Facility, Decorative Strip And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work

Install DECORATIVE STRIP ON INSTRUMENT PANEL AT LEFT
