62 30 010 Removing and installing/renewing head-up display
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
IMPORTANT:
Comply with notes and notes on HANDLING OPTICAL FIBRES
.
Risk of damage!
Do not scratch lens of head-up display.
Risk of damage!
Do not scratch lens of head-up display.
Necessary preliminary work:
- Remove INSTRUMENT PANEL TRIM

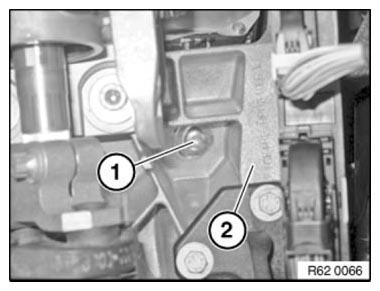

Release screw (1) on carrier housing (2) at bottom.
Tightening torque 62 30 1AZ .

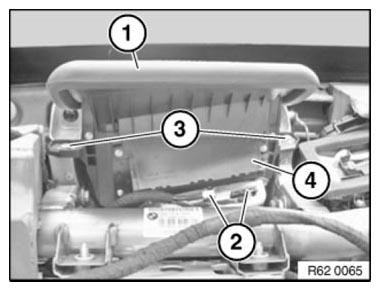

Remove sound insulation (1) from head-up display (4).
Disconnect plug connections (2).
Release screws (3).
Tightening torque 62 30 1AZ .
Carefully feed out head-up display (4) in upward direction.
Installation note:
Clean lens of head-up display.
Adjust HEAD-UP DISPLAY .
Replacement
Carry out VEHICLE PROGRAMMING/ENCODING .
