51 45 031 Replacing instrument panel trim

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM
Change over airbag module on passenger side

NOTE: Operation is illustrated with item in fitted position.

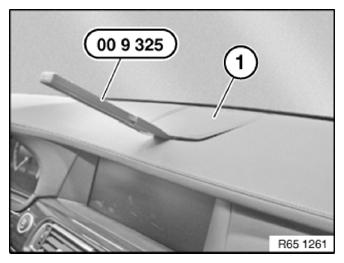

Unclip trim (1) with special tool 00 9 325 from latch mechanisms and remove upwards.

Fig 1: Unclipping Trim

G09879581

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

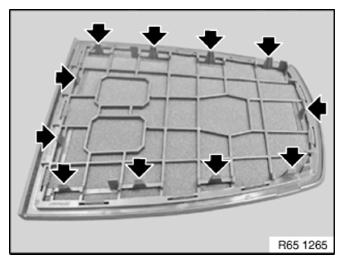

Marked retaining lugs must not be damaged.

Fig 2: Locating Retaining Lugs

G09879582

Courtesy of BMW OF NORTH AMERICA, INC.

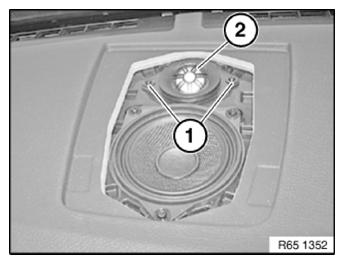

Release screws (1).

Remove tweeter (2) in upward direction.

Fig 3: Identifying Screws And Tweeter

G09879583

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic similar.

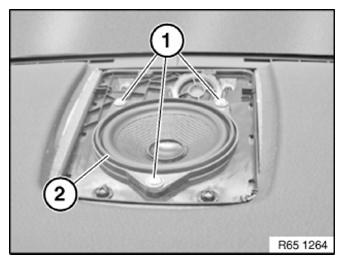

Release screws (1).

Remove speaker (2).

Disconnect plug connection underneath and remove speaker (2).

Fig 4: Identifying Screws And Speaker

G09879584

Courtesy of BMW OF NORTH AMERICA, INC.

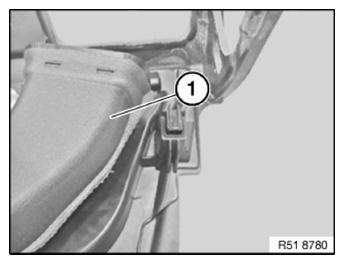

Unclip and change over air ducts (1) on left and right.

Installation:

Make sure air ducts (1) are correctly seated.

Fig 5: Identifying Air Ducts

G09879585

Courtesy of BMW OF NORTH AMERICA, INC.

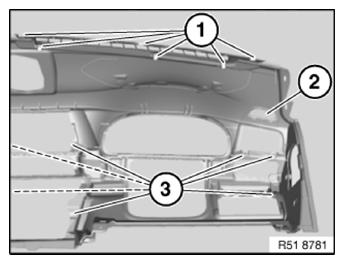

Unclip and change over front defroster outlets (1) on left and right.

Unclip and change over front defroster outlet covers (2) on left and right.

Change over remaining fixings (3).

If necessary, replace RESILIENT SEALING TAPE for VIN number inspection window.

Fig 6: Identifying Front Defroster Outlets And Covers

G09879586

Courtesy of BMW OF NORTH AMERICA, INC.
