51 45... Replacing resilient sealing tape for inspection glass in windscreen (additional work)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Remove strip of resilient sealing tape (2) above stamp area for VIN number (3).

Installation note:

Length of resilient sealing tape (2) = 100 mm

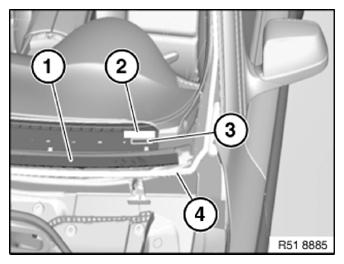

Fig 1: Identifying Resilient Sealing Tape And VIN Number

Courtesy of BMW OF NORTH AMERICA, INC.
