51 23 220 Removing and installing/replacing Bowden cable for engine compartment lid at rear

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!
Only perform work after engine has cooled down.

Necessary preliminary tasks:

Remove SIDE TRIM PANEL FROM FOOTWELL A-PILLAR
Remove SIDE ENGINE COMPARTMENT LID SEAL MOUNTING

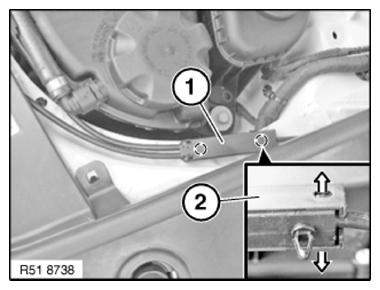

Unclip clutch housing Bowden cable (1) at marked points.

Fig 1: Unclipping Clutch Housing Bowden Cable

G09879256

Courtesy of BMW OF NORTH AMERICA, INC.

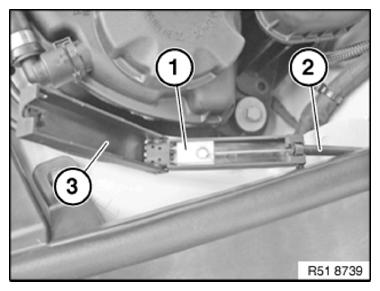

Lever out clutch housing cover (3) in direction of arrow and fold back.

Feed rear Bowden cable (2) out of sliding block (1) and clutch housing (3).

Fig 2: Identifying Clutch Housing Cover And Bowden Cable

G09879257

Courtesy of BMW OF NORTH AMERICA, INC.

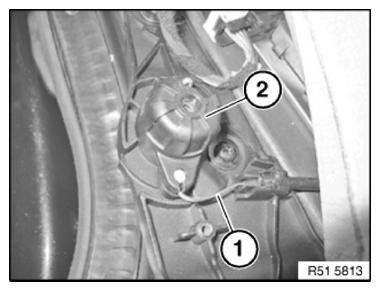

Footwell area, driver's side:

Lever Bowden cable (1) out of actuator for unlocking engine compartment lid (2).

Fig 3: Identifying Engine Compartment Lid And Bowden Cable

G09879258

Courtesy of BMW OF NORTH AMERICA, INC.

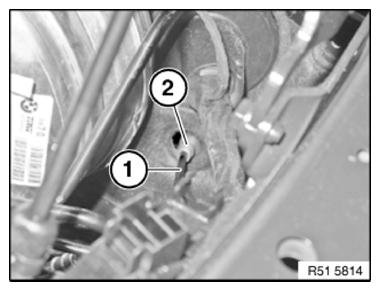

Pull Bowden cable (1) out of bulkhead penetration (2).

Installation:

Make sure Bowden cable (1) is correctly laid.

Fig 4: Identifying Bowden Cable And Bulkhead Penetration

G09879259

Courtesy of BMW OF NORTH AMERICA, INC.
