51 71 480 Removing and installing/replacing cross reinforcement (on rear axle)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe safety information for raising the vehicle
Driving without the trailing link is not permitted!
Driving without the trailing link is not permitted!
Necessary preliminary tasks:
- Remove TRAILING LINKS ON LEFT AND RIGHT
- Release rear silencer and lower slightly. See EXHAUST SYSTEM (N55) or EXHAUST SYSTEM (N63) .

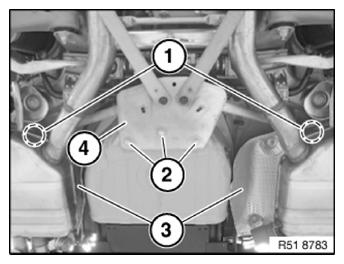

Release nuts of heat shield (3) and lower heat shield (3).
Unscrew nuts (1).
Tightening torque 51 61 14AZ .
Unfasten screws (2).
Tightening torque 51 61 13AZ .
Remove cross reinforcement (4).
